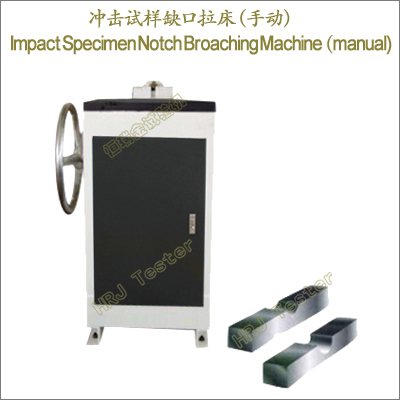

Applications
→It is one of the corollary apparatus for impact test, specially used in the notch processing for impact specimen.
→The sample processed by the broaching machine can meet with the requirements of standards GB/T229-2007, ISO148, ISO83, etc.
→With high quality broaches, made of W18CV4V materials, with high hardness, good wear resistance. Each broach can process about 20000 samples;
→Hydraulic model CSL-Y , double-broach structure, driven by mechanism, and it can make two sample with U-type or V-type notch. It just takes 8 seconds for sample processing, simple and reliable. And it is an ideal apparatus for some departments like metallurgy, boiler and pressure vessel, ships, vehicles, machinery and other departments.
2. Specifications
→Specimen size: 10×10 (or 5/7.5) ×55mm
→Sample hardness: less than HRC40
→Notch type: U-type, V-type
→Broach stroke: 340mm
→Broaching speed: 2.5m/min
→Material of broach: W18Cr4V
→Hydraulic oil mass: approx. 20L
→Working voltage: 3 phase 4 wire 380VAC, 50Hz, 370W
→Dimension of broaching machine: Approx.650x500x1200mm
