Application:

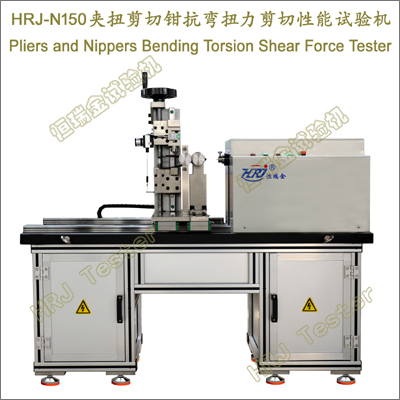

→Used in torsion test, bend test and shear test for pliers.
→The plier testing machine, designed according to GB/T2611-2022 Testing machines—General requirements, JJG269-2006 Torsion Testing Machine, GB/T 15730-2008 Pliers and nippers for electronics-General technical requirements, GB/T 6291-2013 Pliers and nippers. Methods of test, QB/T 2206-2011 Bolt cutters (only for model 200), QB/T 2442.2-2007 Pliers and nippers-Lineman`s pliers, is applicable to torque test for metallic materials and measurement of break torque.
→Max. Torque: 150N.m
→Measuring range of torque: 2%-100% F.S
→Measuring range of torsion angle: 0 °~ ∞
→Torsion speed: 0 °~1080 °/min
→Max. bend load: 2000N
→Max. distance between two chucks: 0-500mm
→Dimension of loading machine (W*D*H): 900*320*1100mm
