Application:
→ Applicable to pipes with diameter less than 3000mm, mainly used to measure ring stiffness and ring flexibility.

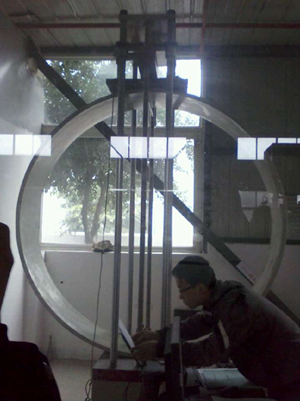

→A cut length of pipe supported horizontally is compressed vertically between two parallel flat plates moves at a constant speed that is dependent upon the diameter of the pipe.
→The ring stiffness is calculated as f function of the force necessary to produce a 3% diametric deflection of the pipe.
→The ring flexibility of a pipe is tested by measuring the force and the deflection while deflecting a ring section from the pipe diametrically at a constant speed until at least the specified deflection is achieved or prior fracture has occurred.
→With precise automatic control and data acquisition system to realize full digitalization adjustment to data acquisition and control process.
→Comply with ISO9969, ISO13968.
→Max. Load: 50kN/100kN/200kN/300kN
→Grade class: Class 0.5
→Measuring range of load: 1%-100%FS
→Load resolution: Load resolution
→Measuring range of deformation: 0.2%-100%FS
→Displacement speed: 0.005-500mm/min
→Span between columns: 750mm
→Vertical test space: 3100mm
