Application:
→ It is widely used in tensile test for steel strands and also tensile test for steel bars.
→It can also be used in compression test and bend test.
→They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining enterprise.
→The machine is calibrated according to BS EN10002-1, BS5896, ASTM E4, ASTM A370, ISO75001, ASTM A1061.

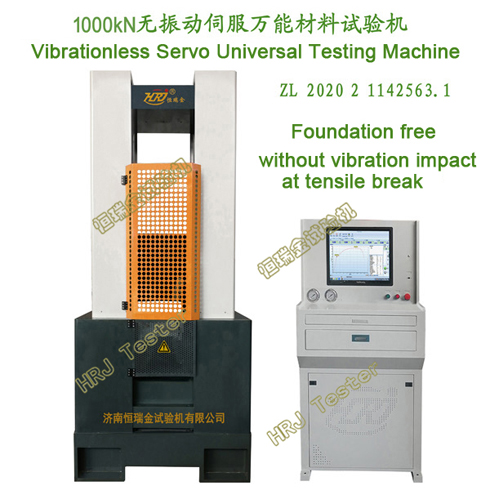

→Using microcomputer controlled high precision electro-hydraulic servo valve to drive precise hydraulic cylinder and can realize constant speed control to test force, displacement, deformation, etc. and so that to make tensile, compression, bending tests. If equipped with accessories, it can comply with other test requirements for various materials.
→Max. Load: 1000kN
→Column No.: 4 columns
→Piston stroke of main oil cylinder: 700mm
→Max. tensile speed of piston: 100mm/min
→Max.falling speed of piston: 150mm/min
→Max. space between jaws: 950mm
→Max. compression space: 800mm
→Span: 450mm
→Wire strand size: Ф8-Ф18mm
→Clamping diameter for round specimen: Ф14-Ф32,Ф32-Ф45mm
→Clamping thickness of flat specimen: 0-40mm
