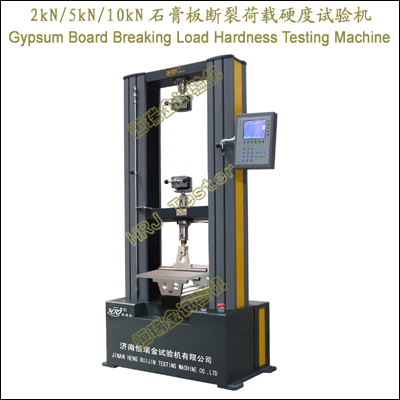

1. Introduction
→Used in determination of break load, flexural strength for ceramic tiles, asbestos-cement corrugated sheet, gypsum board, decorative gypsum board, fiber gypsum board, paper gypsum board, etc.
→Used in tension, compression, bending tests for rubbers, plastics, film, etc.
→Comply with standards: GB, ISO, ASTM, etc.
2. Technical Specifications
→Max.compression load: 20kN
→Accuracy class: Class 0.5
→Load resolution: 0.01N
→Deformation resolution: 0.01mm
→Loading rate: (4.2±0.8) N/s
→Displacement speed range: 0.2-600mm/min
→Span between columns: 400mm
→Stroke of crosshead: 1000mm
→Motor power: 400w
→Dimension (L*W*H): 860x460x1750mm
