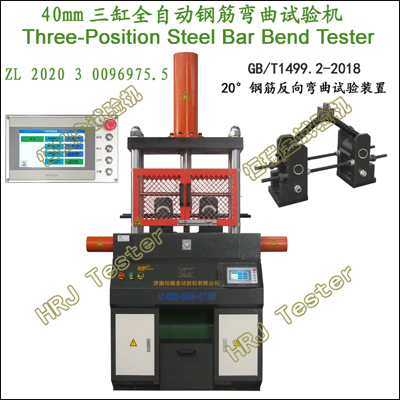

→It is developed specially to make 90 degree and 180 degree bending test for metallic flat sample or round bars.
→The distance between two supports can be adjusted.
→Different size of loading punch can be equipped with the machine according to specimen size.
→It can be used in bending test at any bending angle in the range of from 0° to 180°.
→Max. sample diameter: less than 40mm
→Working pressure: 28MPa
→Vertical load of main loading cylinder: 300kN
→Horizontal load of auxiliary loading cylinder: 60kN
→Vertical piston stroke: 0-350mm
→Piston stroke of auxiliary cylinder:
→Vertical loading speed: (1±0.2) mm/s
→Bending angle: 0°-180°
→Span between two rolls: 0-400mm
→Roll diameter: Φ100mm
→Roller length: 100mm
→Control mode: Touch screen control mode
→Loading mode: Three-cylinder automatic loading
