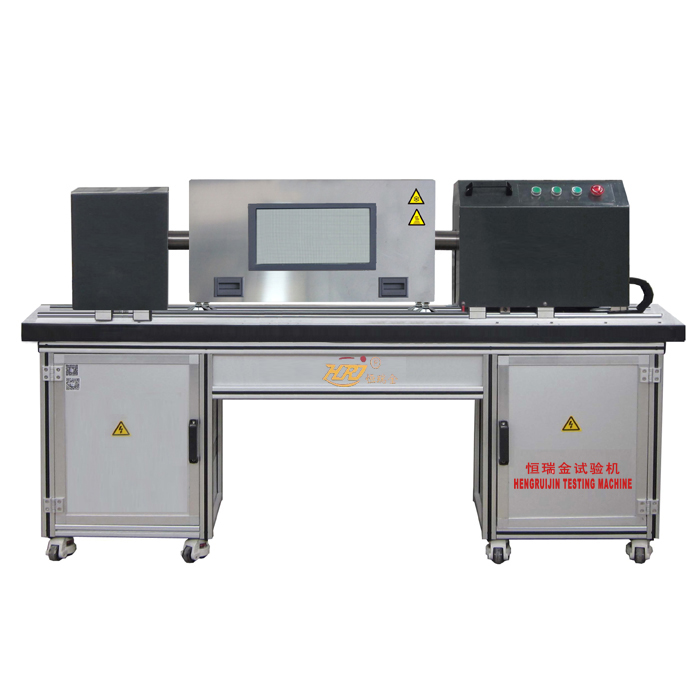

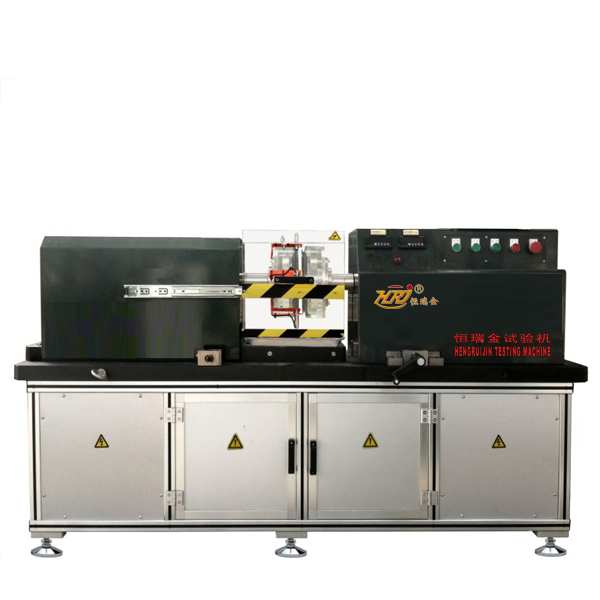

→FRST100/2000 floating ring seal abrasion tester is used to test the wear condition of the floating oil seal assembly during the rotating process, test the running-in period of the floating seal and study and assess the durability of the floating seal.
→Install a pair of floating oil seal components on the testing machine in the normal installation form, and realize relative rotation under the condition of lubricating oil injection. The floating seal seat is placed on the left and right and one end rotate, the other end is applied by axial load. With fully-closed detachable floating seal seat sandbox, simulating oil, gas, water, dust, clay sand and other working conditions to ensure no leakage of oil, gas, water, dust and clay sand during the rotating test.
→Floating seal rotation test, axial loading test of floating seal, floating seal angle offset loading test, floating seal off-axis offset loading, combination test of floating seal angle offset loading and off-axis offset loading, real-time torque test, load test, plotting floating seal Temperature/Torque-Time curve.
→It can monitor oil dripping of floating seal lubricating oil in the realtime. If there is any oil dripping during test, it will give out warning alarm and machine stops and record the stop time.
→Real-time monitoring of floating seal ring temperature: monitoring the temperature of floating seal ring at five positions, warning of over temperature and recording the shutdown time.
→Used in floating oil seal running-in test of dynamic sealing function of moving parts and planetary speed reducing parts of construction machinery.
→Floating seal ringrunning-in test, floating seal running-in test for construction machinery, HRJ Tester, floating seal abrasion test of moving parts, end surface floating seal abrasion test, floating seal ring abrasion test of coal mining machine, floating ring seal abrasion test of light mechinery, abrasin test of rotating mechinery seal, seal abrasion test of rotating shaft, HRJ Tester, floating seal abrasion test of grader, floating seal abrasion test of loader, abrasion test of rotating oil seal, abrasion test of centrifugal floating seal, dynamic seal performance test of DO type floating seal, dynamic seal performance test of floating seal.
Technical Specifications
→Ergonomic design, high rigidity, high stability, no vibration impact, streamlined loading frame, more than 2 times the load stiffness.
→Horizontal load propulsion system, high speed rotary drive system, temperature monitoring system, lubricating oil dripping monitoring system, angular offset system, off-axis migration system;HRJ-Test floating seal abrasiontest system.
→100N. m rotary torque test, 2000N floating pressure load test.
→0 ~ 20 times /min variation frequency, 0 ~ 10 r /s rotation speed.
→0 ~ 600r/min high speed forward and backward rotation, 9 million counts.
