Application

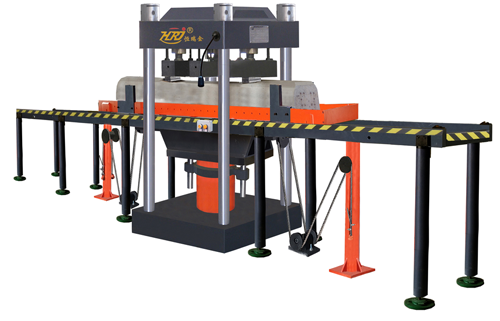

→Used in some labs without foundation force, it can adopt four-column loading frame for load concrete sleeper static loading test study and teaching experimental study.
→Used in some labs with foundation force, it can adopt combination of multiply loading frames for structural engineering load test study and teaching experimental study.
→Used for simulative loading test study and teaching experimental study of typical structural parts, such as beams,columns,joints and frames.
→Comply with standards:
Verification Regulation for 500kN Concrete Sleeper Static loading Testing Machine
TB/T2190-2013 Concrete sleeper
TB/T2190-2013 Concrete for railway construction
Technical Specification:
→max.load capacity: 500kN
→measuring range of load: 1%-100%
→loading resolution: 1/300000
→500kN static loading servo cyliner
→loading stroke0-250mm
→test space: 0-450mm
→column space:850mm
→movable sample delivering unit: 3300x550(pin hole spacing:100mm)
→movable sliding rail support: 6000x600
