Application
→Vertical drop test of container bag: Lift the container bag full of contents to a certain height and released, and it will freely drop to a rigid plane to check whether the contents overflow, whether the bag body and connection part are damaged and other abnormal conditions occur, and judge whether the whole container bag is qualified; And the impact strength of transport packages under vertical impact and the protection capacity of package contents can be assessed.
→The drop height and drop times can be set and selected.

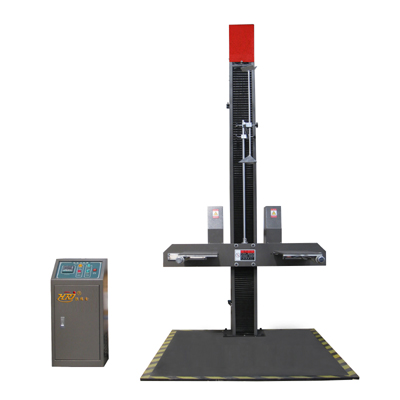

→Double plate drop testing machine.
→Drop height: 300-1500mm, specially used to test the damage situation of product packaging and evaluate the impact strength during transportation.
→Using double column guide and it can achieve edge, surface, angle drop test.
Square, round container bags (box, semi-open, fully open), volume (0.5-2.3) m3, load ≤150kg container bags; Other types of packaging.
→Drop height range：300-2000mm, 300-2500mm
→Lifting height range: 300-2000mm, 300-2500mm
→Max.mass: 150kg,100kg
→Size of lifting bearing plate: 700×250mm /double plate
→Size of drop bearing plate: ≤1700x1200mm
→Size of packaging: ≤1000x1000x800mm
→Span adjusting mode: Manual adjustment,lock advice
