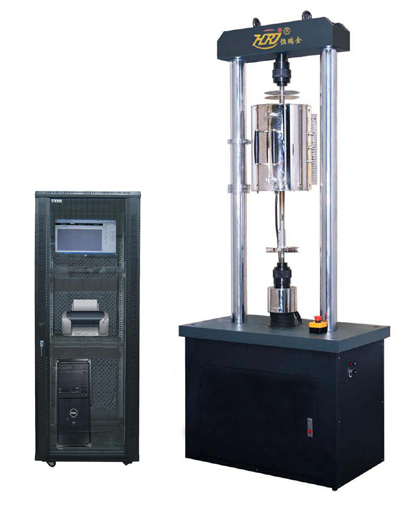

→Applicable to creep property and stress rupture strength test for metals and alloys at room temperature and high temperature, is special testing equipment in ferrous metallurgy, aerospace aviation, scientific institute, colleges and quality supervision, etc.
Standards
→ISO204 Metallic Materials-Uniaxial Creep Testing Method in Tension
→DIN EN ISO 7500-2 Metallic materials - Verification of static uniaxial testing machines - Part 2: Tension creep testing machines - Verification of the applied force
→ASTM 139-2006 Standard Test Methods for Conducting Creep, Creep-Rupture, and Stress-Rupture Tests of Metallic Materials

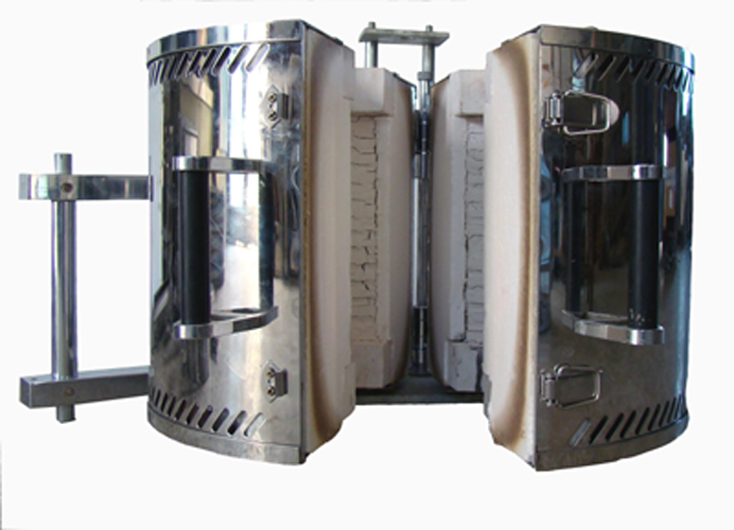

Specifications for furnace
→working temperature: 300℃-900℃
→even heat area length: 100mm
→temperature accuracy
Test temperature (℃) |
Temperature error (℃) |
Temperature gradient (℃) |
200~600 |
±3 |
3 |
600~900 |
±4 |
4 |
→inner dimension of furnace: Ф90×300mm
→overall dimension of furnace: Ф320*380mm
→split three step heating
→warming power can be adjusted by temperature controller
