→Used for determination of the tensile strength properties of geogrids by subjecting strips of varying width to tensile loading.
→It is used for quality control and conformance testing of geogrids.
→Three alternative procedures are provided to determine the tensile strength, as follows:
Method A-Testing a single geogrid rib in tension

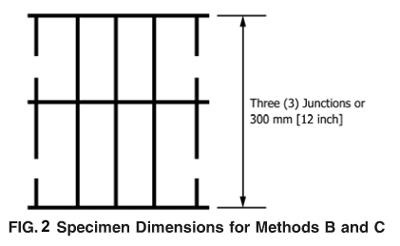

Method B-Testing multiple geogrid ribs in tension.
Method C-Testing multiple layers of multiple geogrid ribs in tension.
→ASTM D6637/D6637M-15 Standard Test Method for Determining Tensile Properties of Geogrids by the Single or Multi-Rib Tensile Method

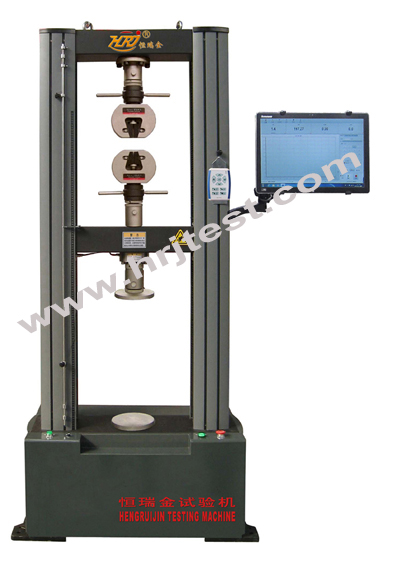

→max. test force: 50kN
→measuring range of load: 2%-100%
→load resolution: ±1/300000
→test speed: 0.001-500mm/min
→stroke of crosshead: 1000mm
→power supply: 1phase, 220VAC
