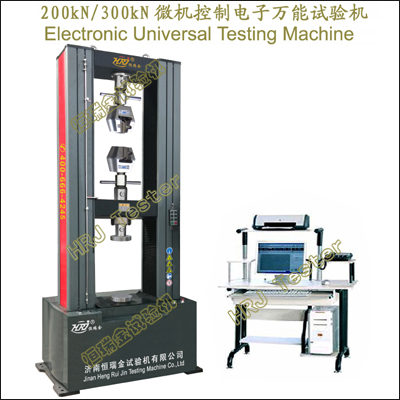

Introduction
1) used for tension, compression, bending, peeling, shearing tests for metals and nonmetals.
2) used for property test for various thinner metals, steel wires, elastomer, foamed materials, etc.
3) used for pull off, peeling off and welding strength tests for electronic components.
Technical Specification
1) max. load capacity: 200kN/300kN;
2) measuring range of load: 0.4%-100%FS;
3) load accuracy: better than ±0.5%;
4) load resolution: 1/±300000F.S (with constant resolution along the whole stroke);
5) measuring range of deformation: 0.2%-100%FS;
6) adjusting range of control rate of load: 0.005-5%FS/s;
7) adjusting range of deformation rate: 0.005-5%FS/s;
8) adjusting range of displacement rate: 0.001-500mm/min;
9) max. stroke of crossbeam(excludes the fixtures): 1250mm
10) effective test space: 610mm
11) power supply(with grounded protective measures): 380V±10%, 50Hz
12) power: 5kw
13) dimension (L*W*H): 1050*750*2600 (mm)
