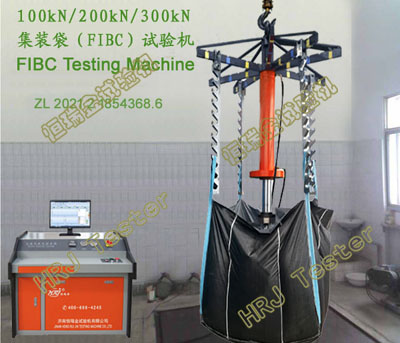

FIBC100kN/200kN/300kN Flexible Freight Container Testing Machine

锘?

DETAIL

→FIBC100kN Computer Control Flexible freight container Testing Machine(CE CUL/CSA)→FIBC200kN Computer Control Flexible freight container Testing Machine(CE CUL/CSA)

→FIBC300kN Computer Control Flexible freight container Testing Machine(CE CUL/CSA)

Function

→Used in cyclic top lift test, load test,dropping test to check whether there is content overflow,damage between container body and connection area,by which to determine whether container is qualified.

→Cyclic top lift test (2 times test load,as for limited bag, 70 times top lift test.as for disposable bag, 30 times top lift test), load test (4 times load), automatically complete 70 times or 30 times cyclic load test, load hold time not less than 8 hours.

→Vertical dropping test: lift container with full load up about 0.8m above the ground and then drop it onto the solid,rigid,smooth ground. If there is no damage,it is qualified.

→Security coefficient check: top lift test (max.bearing/rated load, 6 times load,constant loading period ≥5min.

→Automatic control,data acquisition, processiong,analysis,qualified judgment, output of test curves and report.

→Used in property of square or circle containers, flexible container, volume(0.5-2.3)m³,load(500-3000)kg.

→IATM International Association for Testing Materials

→JIS Z1651-2008 Flexible intermediate bulk containers (FIBCs) for non-dangerous goods

→ISO 21898-2004

→BS EN ISO 21898-2006

→DIN EN ISO 21898-2005

→Packaging-Flexible intermediate bulk containers (FIBCs) for non-dangerous goods

→NF H34-012-2005，NF EN ISO21898-2005 Packaging- Flexible intermediate bulk containers (FIBCs) for non-dangerous goods

→BS EN277 Sacks for the transport of food aid-Sacks made of woven polypropylene fabric

→SN/T1259 Rules for the inspection of export flexible intermediate bulk containers

→SN/T0183-2014 Role for the inspection of transport packaging for export commodities-Flexible intermediate bulk containers(FIBCs)with handle

→SN/T3733-2013 Flexible intermediate bulk containers(FIBCs)-Test method for cyclic top lift；

→AS 3668 Flexible intermediate bulk containers-Non-dangerous goods；

→GB/T10454-2000 Flexible freight container；

→GB/T17448 Packaging—Dimensions of flexible freight container transport packages

Specifications

100kN/200kN/300kN Flexible freight container Testing Machine(CE CUL/CSA)
1	Max.load capacity	100kN/200kN/300kN
2	measuring range of load	2%～100%F.S
3	load resolution	1/±300000F.S
4	relative error of indicating value of load	≤±1%
5	Loading rate	0～60kN/s
6	piston stroke	0～800mm
7	diameter of pressure platen	Ф400mm～Ф800mm
8	sectional equant hanger	six equant section,four equant section,trisection,eight equant section,six equant section
9	lifting hanger	Eleven equant section,adjustable
10	Container size	400～1200mm
11	height of container body	500～2000mm
12	Loading mode	Servo contorl
13	Cyclic top lift test	fill the container full and apply load with 2 times load,as for limited bag, 70 times top lift test.as for disposable bag, 30 times top lift test
14	Load test	Fill the container full and load up to 4 times load, loading period≥8h。
15	vertical dropping test	lift container with full load up about 0.8m above the ground and then drop it onto the solid,rigid,smooth ground. If there is no damage,it is qualified.
16	Power voltage	380V±10%，50Hz
17	Loading frame（LWH）	￠1500x2300mm
18	Dimension of cabinet（LWH）	1200x800x1100mm
19	weight	Approx. 1100kg
