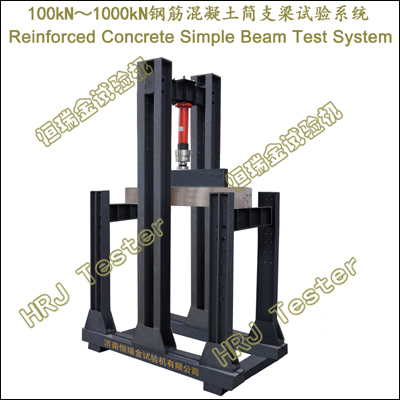

100kN-1000kN Reinforced Concrete Simple-Supported Beam Static Loading Testing System

 1. Introduction

• Adopting self-reaction structure, it used for reinforced concrete simple-supported beam test and teaching experiment research in the labs without counterforce foundation.
• Used for normal section bearing capacity test of concrete beam flexural member.
• Adopting self-reaction structure, it used for reinforced concrete simple-supported beam test and teaching experiment research in the labs without counterforce foundation.


   2. Specification

• Max. Load capacity: 100kN/200kN/300kN/500kN/1000kN;
• Height of loading frame: ≥2220mm (adjustable spacing);
• Support distance of tested structural beam ≥1200mm (adjustable spacing);
• Loading stroke: ≥150mm；
• With plotting capacity of Load-Stress curve.
• Hydraulic loading
